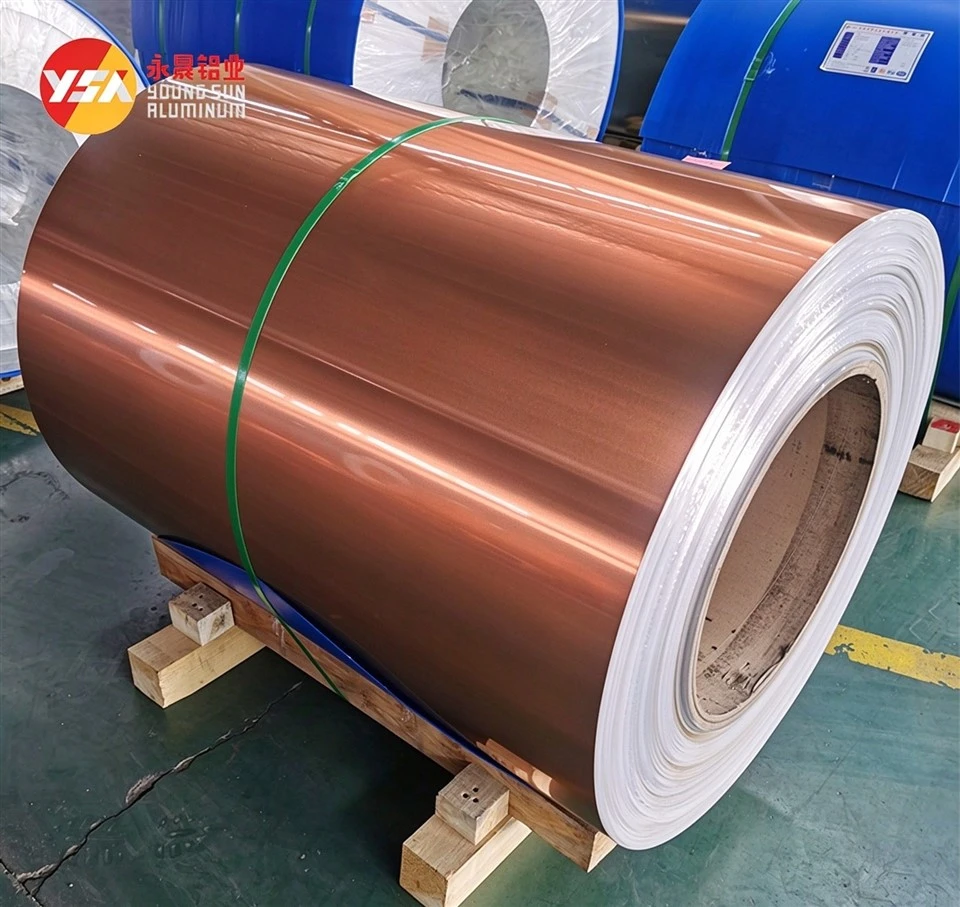

Copper Colored Aluminum Sheet

Copper colored aluminum sheet is a pre-painted aluminum product that delivers the warm visual character of copper with the structural and economic advantages of aluminum. Unlike solid copper, this copper colored aluminum sheet weighs approximately 70% less and costs significantly less per square meter, while maintaining excellent corrosion resistance through its factory-applied coating system.

This copper colored aluminum sheet is manufactured through continuous coil coating: the aluminum substrate is cleaned, chemically conversion-coated, primed, and top-coated with either PE (polyester) or PVDF (polyvinylidene fluoride) paint, then cured in a high-temperature oven to form a firmly bonded, continuous film. The result is a consistent, uniform copper-tone finish that resists fading, chalking, and peeling under extended UV exposure.

Available in alloy grades 1060, 1100, 3003, 3105, 5052, and 8011, this copper colored aluminum sheet can be supplied in coil, strip, or cut-to-length sheet form. Standard thickness ranges from 0.20 mm to 6.0 mm for coil and up to 6.0 mm for sheet, with width up to 1,500 mm. Both sides can be coated - front side PE ≥18 μm / PVDF ≥25 μm, back side 8–10 μm - with RAL color matching or custom shade development based on confirmed samples.

 Henan Yongsheng Aluminum Industry Co., Ltd. produces copper colored aluminum sheet at its facility in Gongyi City, Henan Province - China's largest aluminum sheet and strip processing base. The factory is located in the Gongyi Industrial Cluster District (Huiguo Town), an area that accounts for approximately 34% of China's total aluminum sheet and strip output and hosts over 200 aluminum processing enterprises.

The copper colored aluminum sheet production line operates continuous coil coating equipment with precision tension levelers, multi-stage chemical conversion treatment, and infrared curing ovens. The process runs from decoiler through coating, curing, and recoiler in a single controlled sequence, ensuring uniform coating weight and consistent color across every coil. Both CC (continuous casting) and DC (direct chill) material lines are available, giving buyers flexibility in substrate selection.

Annual output capacity is substantial. Each coil of copper colored aluminum sheet is tested to ASTM B209 and EN 485 standards. Mill Test Certificates (MTC) are issued per EN 10204 3.1, and third-party inspection (SGS, BV) can be arranged at buyer's request. The company holds ISO 9001 and ISO 14001 certifications, and has maintained an A-level taxpayer credit rating for multiple consecutive years from 2019 to 2024.

The factory's coating lines are equipped with X-ray thickness gauges for inline coating measurement, and batch samples are retained for traceability. An in-house color laboratory handles RAL matching and custom shade development for copper colored aluminum sheet, typically requiring 3–5 working days for first sample production.

Fabrication services include slitting, cut-to-length processing, embossing, and protective film application. Coil inside diameter options are 405 mm, 505 mm, and 605 mm; sheet lengths up to 10,000 mm are available. Monthly capacity for coated aluminum coil and sheet exceeds 5,000 metric tons.

Factory Capability Summary:

• 6 continuous coil coating lines, max line speed 80 m/min
• Inline X-ray coating thickness measurement; batch samples retained
• In-house color lab for RAL matching and sample development
• Slitting, cut-to-length, embossing, and protective film application
• Monthly capacity: 5,000+ MT for coated aluminum coil/sheet
• Standard lead time: 7 days for ready stock; 15–25 days for OEM production
• MOQ: 2–5 metric tons per size; mixed-alloy consolidated orders accepted

Copper colored aluminum sheet is specified where a warm metallic appearance is required without the weight, cost, and patina variability of solid copper. Its weather resistance and formability make it suitable for both exterior and interior applications.

Architectural Facades & Cladding

Copper colored aluminum sheet is widely used for rainscreen cladding, column wraps, soffits, and canopy fascias. The PVDF-coated version retains color and gloss under direct sunlight and rain exposure, making it suitable for commercial buildings, hotels, and mixed-use developments. The copper tone provides visual depth that integrates well with brick, stone, and timber facades. Copper-colored metal panel facades have been successfully specified for office building renovations, where aluminum panels finished in copper anodize replaced concrete exteriors.

Roofing & Drainage Systems

Pre-painted copper colored aluminum sheet is used for standing-seam roofing, gutter linings, and roof drainage components. Aluminum's natural corrosion resistance, combined with the PVDF coating, allows this copper colored aluminum sheet to perform in coastal and industrial atmospheres where salt spray and acid rain are present.

Signage & Wayfinding

Sign fabricators use copper colored aluminum sheet for dimensional letters, panel-mounted signs, and wayfinding systems in retail centers, hotels, museums, and corporate campuses. The surface accepts vinyl application, screen printing, and CNC routing. The copper tone reads as premium and warm without the maintenance demands of real copper.

Interior Design & Fixtures

Interior designers specify copper colored aluminum sheet for wall panels, ceiling tiles, elevator cab linings, display fixtures, and column covers. The PE-coated version is typically used for interior applications, where color stability and formability are the primary requirements.

Industrial & Appliance Components

This copper colored aluminum sheet is also used in appliance fascia panels, HVAC equipment housings, electrical enclosures, and decorative trim for industrial products. Its combination of light weight, corrosion resistance, and coating durability suits high-volume fabrication environments.

Key Application Sectors:

• Commercial and residential building facades
• Roofing, gutters, and rainwater goods
• Signage, wayfinding, and retail display
• Interior wall and ceiling systems
• Appliance and equipment paneling
• Marine and coastal construction (PVDF grade)

Copper colored aluminum sheet is available in a range of custom configurations. Buyers can specify alloy grade, temper, thickness, width, length, coating type, coating thickness, gloss level, and color.

Color & Finish: RAL colors, wood grain, stone grain, brushed, embossed stucco, and mirror finishes can be produced. Copper tone variations - light copper, antique copper, brushed copper - are developed from buyer-supplied samples or Pantone references.

Size & Form: Coil inside diameter 405/505/605 mm; sheet lengths up to 10,000 mm. Slitting to narrow strip widths and cut-to-length processing are standard for copper colored aluminum sheet orders.

Surface Protection: PE/PVC protective film can be applied to the main side for transit and fabrication protection. Film thickness and adhesion level can be adjusted for laser cutting or bending processes.

Samples: A4-size copper colored aluminum sheet samples are provided free of charge; freight is at destination. Custom color matching on copper colored aluminum sheet typically requires 3–5 working days for first sample.

Pre-Sale: Technical data sheets, coating performance reports, and application guidance are provided for each copper colored aluminum sheet inquiry. The team can recommend alloy and coating combinations based on end-use environment - interior, exterior, coastal, or industrial.

Quality Documentation: Mill Test Certificates (EN 10204 3.1), coating adhesion test reports, salt spray results (ASTM B117), and color consistency records are supplied with shipment. Third-party inspection coordination (SGS, BV, Intertek) is available.

After-Sale: A 12-month quality response window applies to coated copper colored aluminum sheet products. PE coating carries a 10-year color warranty for interior use; PVDF coating carries a 20-year warranty for exterior applications under normal exposure conditions. Claims are handled with photo documentation and batch traceability through coil markings and test certificates.

Copper colored aluminum sheet is packed to ASTM B660 practice. Coils are wrapped with neutral moisture-resistant paper and plastic film, with edge protectors and desiccant placed in the core. Coils are secured to wooden or metal pallets with steel strapping. Sheets are packed in plywood cases or standard export boxes with corner protection.

Packaging Components:

• Inner: Neutral (weakly acidic) moisture-resistant paper
• Middle: Plastic film wrap, heat-sealed
• Outer: Wooden pallet / plywood case / standard export box
• Edge protection: Corner guards on all sheet bundles
• Core: Desiccant inserted in coil core

Shipping: Main loading port: Qingdao - the standard export route for Gongyi aluminum products, with regular truck departures from Gongyi to Qingdao Port. Tianjin and Shanghai ports are available upon request. FOB, CFR, and CIF terms accepted. Standard 20' container loading: approximately 20–22 MT for coil.

Marking & Traceability: Each coil/sheet bundle carries a label showing alloy, temper, size, coating type, batch number, and net weight, cross-referenced to the MTC.
